EE14, EE16 / 7, EE1512 high frequency transformer common application and selection guide

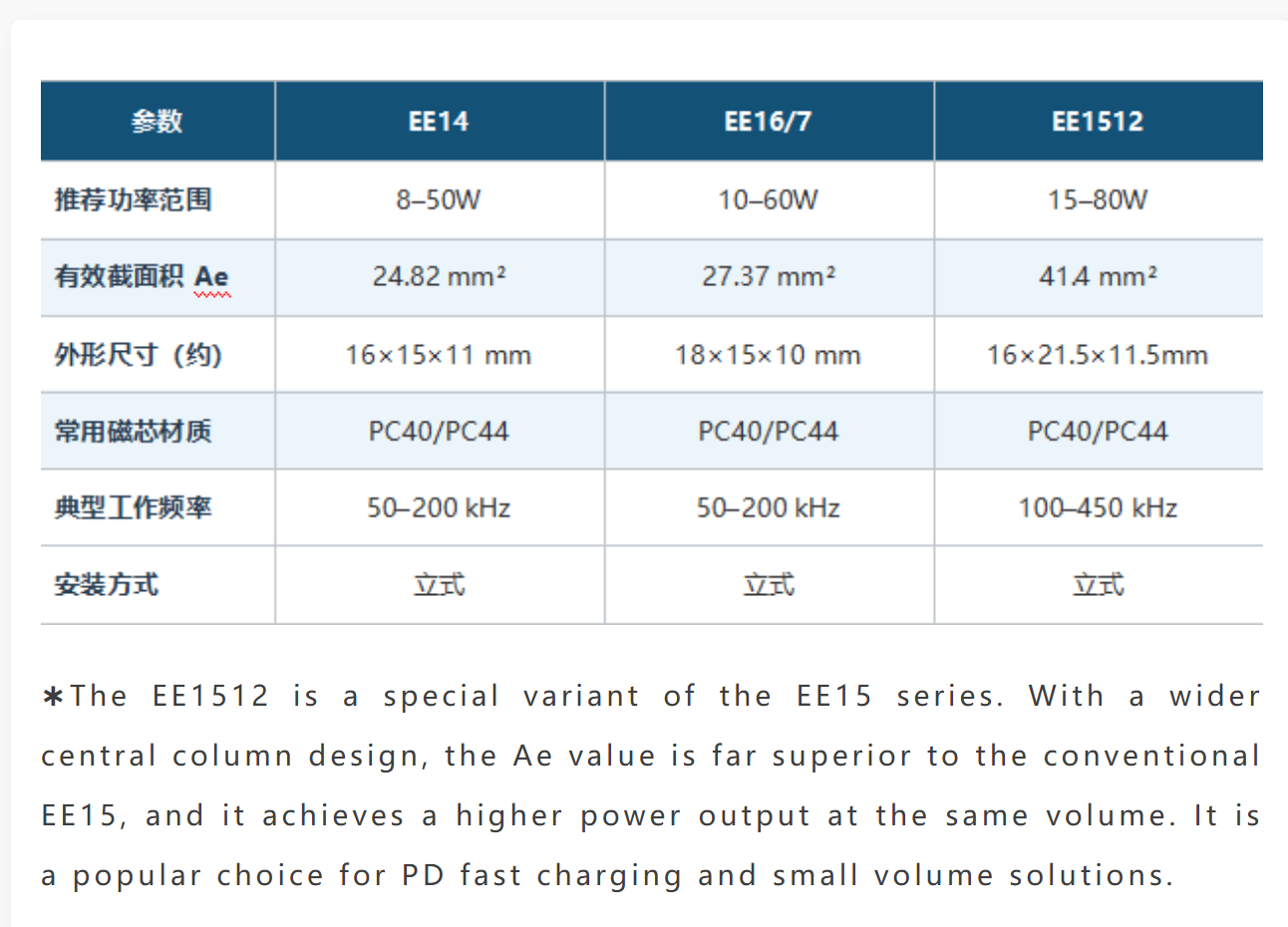

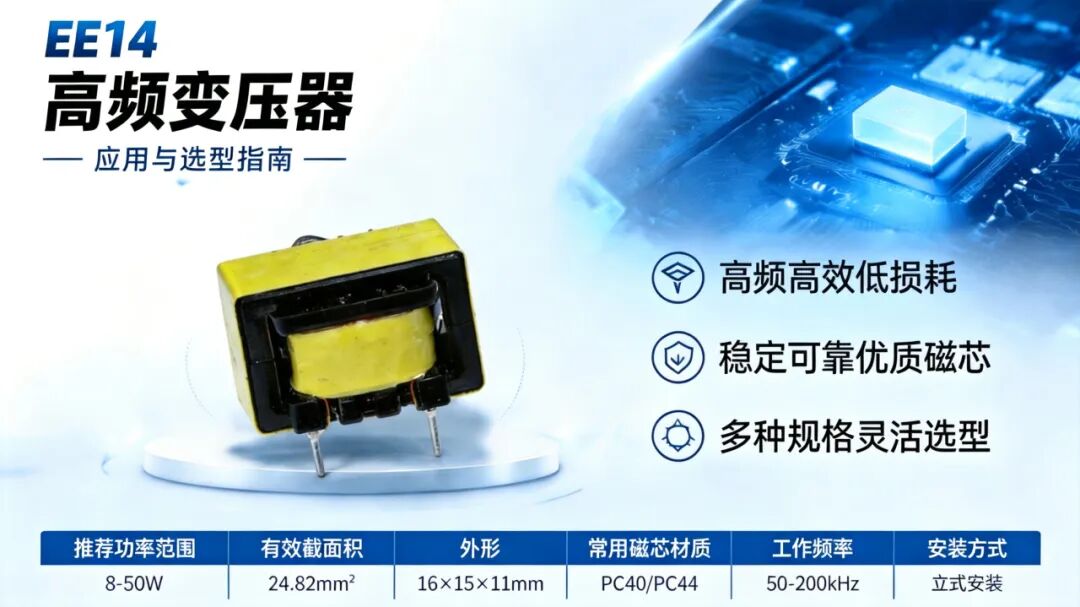

A snapshot of core parameters

Typical applications:

· 5V / 1A Mobile Charger (5W classic solution)

· Intelligent home equipment auxiliary power supply (road, smart speaker, top box 12V / 0.5A-1A)

· Small appliances built-in power supply (electric toothbrush, razor, LED table lamp)

· DC-DC isolation conversion module (24 V → 5 V logic voltage)

· IGBT /MOSFETGate drive transformer

Key considerations when selecting a model :

· Power ≤ 8W Preferred, the best choice for extremely limited space scenarios

· Input 85-265VAC wide voltage, output 3.3V-12V

· Note the core saturation margin ； for flyback topologies, it is recommended that Bmax ≤ 0.3 T.

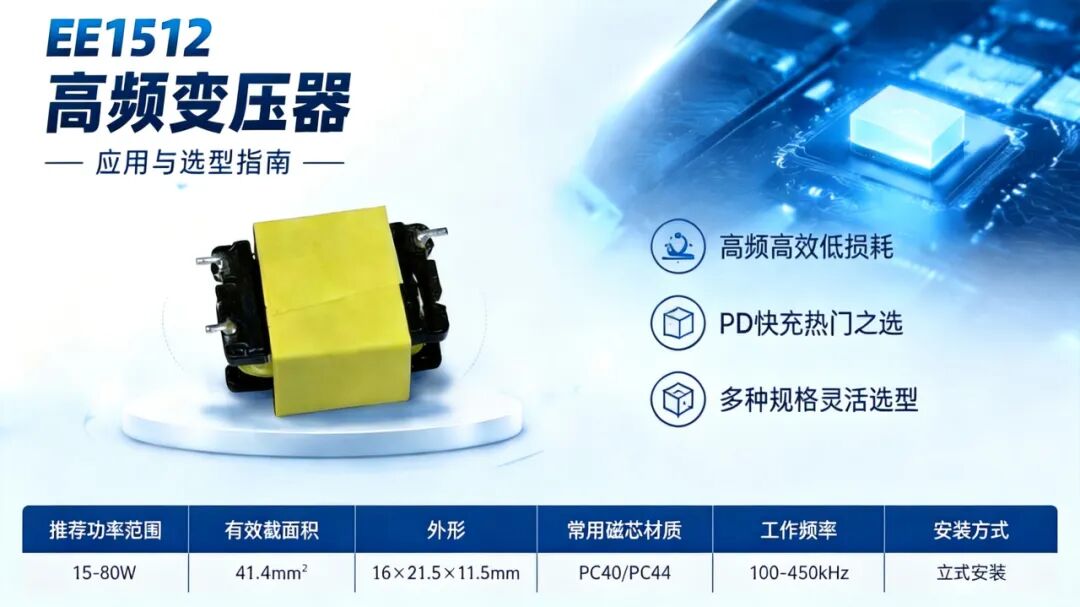

Typical applications:

· 5V / 2A USB charging device (10 W solution)

· 12V / 1A Adapters (Wayfarer, Surveillance Camera)

· Auxiliary power supply for large household appliances (air conditioning, washing machine MCU power supply, display panel 5V / 12V isolated power supply)

· LED drive power supply (low power isolated LED drive)

· Battery charger (power tools, mobile power)

Tips for Selection:

· 10-15W Power Section Best Price Performance

· Horizontal installation suitable for low height PCB (adapters, thin filling appliances)

· Standing installations are suitable for a regular layout and have more space for loops
